How to Install Foam-Backed Headliner Fabric: A Complete Guide
Share
Foam-backed headliner fabric is the standard for automotive headliner replacement — the foam layer bonds cleanly to the headliner board and gives the finished surface a smooth, factory look. But it does behave differently from non-backed fabric, and knowing what to expect makes the installation significantly easier.
This guide covers everything specific to working with foam-backed material, from prep through final trim.
Why Foam-Backed Fabric?
The foam backing serves two purposes: it provides a consistent surface for the adhesive to grip, and it adds a slight cushion that gives the headliner a premium, OEM-quality feel. It also helps hide minor imperfections in the headliner board surface — small scratches or shallow gouges won't telegraph through the way they might with a thinner material.
Our Black Stretch Suede Headliner Fabric is foam-backed, 60" wide, and features 8-way stretch — which makes it considerably easier to work around curves, contours, and cutouts without bunching or wrinkling.
What You'll Need
- Foam-backed headliner fabric (cut to size — see below)
- Contact adhesive — browse our full adhesive selection
- A brush or short-nap paint roller for adhesive application
- Plastic scraper and tack cloth for board prep
- Scissors and a sharp utility knife
- Trim removal tools
- A helper for larger vehicles
Step 1: Prep the Headliner Board
Remove the headliner board from the vehicle and strip all old fabric and foam residue. This step is critical — foam-backed fabric will conform to whatever surface it's bonded to, so any lumps, crumbles, or debris will show through the finished surface.
Scrape the board clean, vacuum thoroughly, and finish with a tack cloth. The board should be smooth and dust-free before you apply any adhesive.
Step 2: Cut the Fabric
Lay the fabric face-down on a clean, flat surface. Place the headliner board on top of it and cut the fabric leaving 3–4 inches of overhang on all sides. This gives you enough material to wrap and tuck the edges without pulling the face of the fabric tight.
If your board has cutouts (dome light, sunroof, coat hooks), don't cut them yet — you'll handle those after bonding.
Step 3: Apply Adhesive to Both Surfaces
Contact cement must be applied to both the board and the foam side of the fabric. Use a brush or roller to apply a thin, even coat to each surface. Work in manageable sections — don't try to coat the entire board and fabric at once on your first attempt.
Allow both surfaces to become tacky before bonding. This typically takes 5–10 minutes depending on temperature and humidity. Test by lightly touching the surface with your knuckle — it should feel sticky but not transfer to your skin.
Important: The foam side of the fabric is more porous than the board surface and may absorb the first coat quickly. If the foam side loses its tack before you're ready to bond, apply a light second coat and allow it to tack again.
Step 4: Bond the Fabric — Center Out
Start at the center of the board and work outward toward the edges. This is the most important technique for a wrinkle-free result — starting at an edge and working across almost always traps air in the middle.
Lower the fabric onto the board carefully, pressing firmly with your palm as you go. The 8-way stretch in the fabric lets you ease it around curves — apply gentle, even tension as you work toward the edges rather than pulling hard in one direction.
Once bonded, go over the entire surface with a roller to maximize contact and press out any remaining air pockets.
Step 5: Handle Cutouts
For dome lights, sunroofs, and other openings, press the fabric firmly over the cutout first, then use a sharp utility knife to cut an X from corner to corner of the opening. Fold the resulting flaps under the board edge and glue them down. Trim any excess so the flap lies flat and won't interfere with reinstalling the trim piece.
Step 6: Wrap and Secure the Edges
Fold the overhanging fabric over the edges of the board and bond it to the underside. Pull the fabric taut as you wrap — enough tension to keep the face smooth, but not so much that you distort the fabric or pull it away from the board surface. Trim excess fabric so the edge is clean and won't bunch under the trim panels.
Step 7: Cure and Reinstall
Allow the adhesive to cure for at least 30–60 minutes before reinstalling the board. Slide it back into the vehicle, reinstall all trim pieces, and reattach the dome light, visors, and grab handles.
Troubleshooting Common Issues
- Small bubbles after installation: Apply low heat with a hair dryer to relax the fabric, then smooth with your palm or a roller.
- Edge lifting: Apply a small amount of adhesive under the lifted area, allow to tack, and press firmly. Hold for 30–60 seconds.
- Wrinkles near curves: The foam backing can bunch slightly on tight curves. Use the stretch of the fabric to ease it flat — pull gently in the direction perpendicular to the wrinkle.
Get the Materials
Ready to start? Shop everything you need for a clean foam-backed headliner installation:

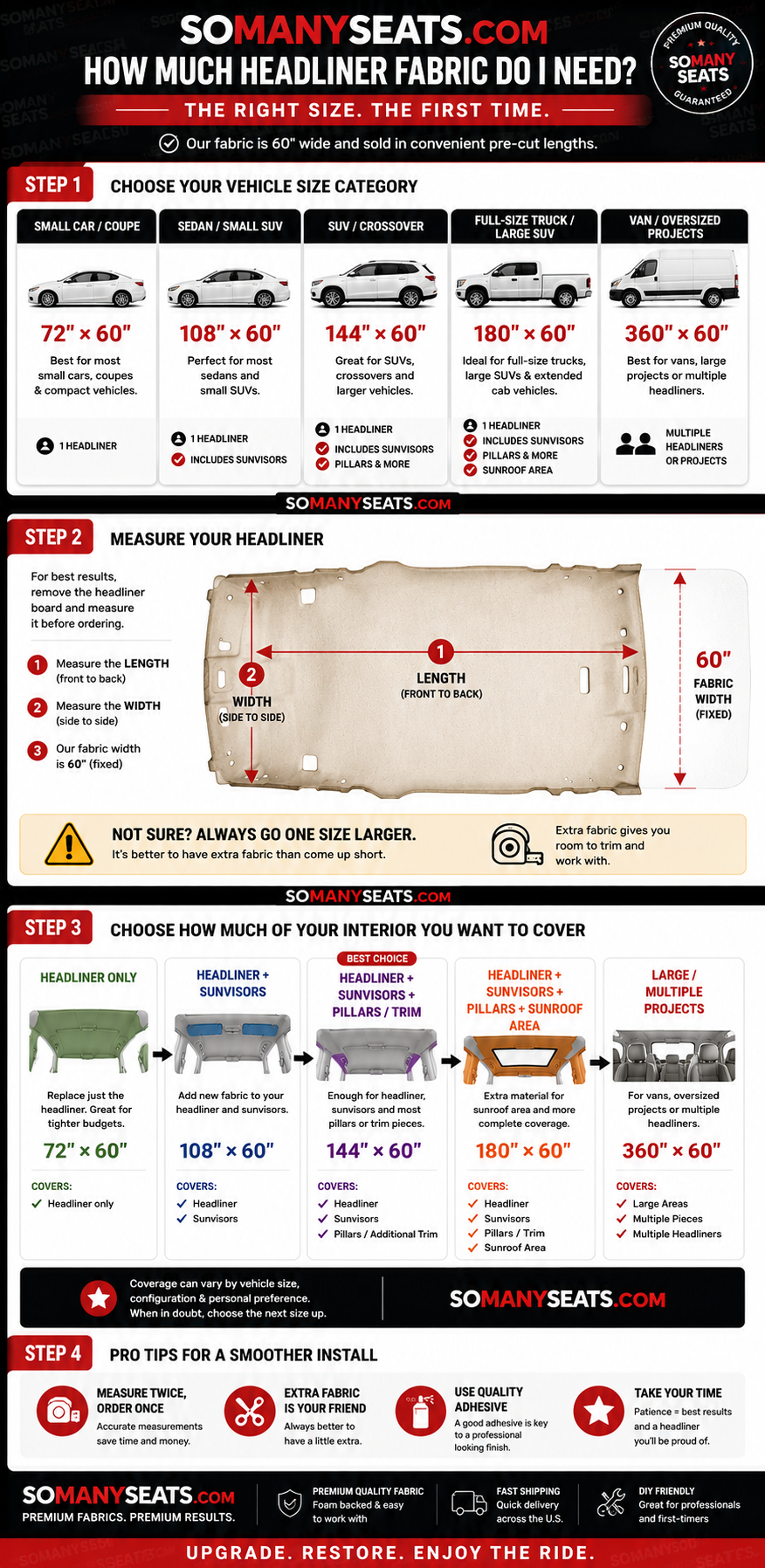

Not sure how much fabric to order? Use our quick guide: How Much Headliner Fabric Do I Need?
