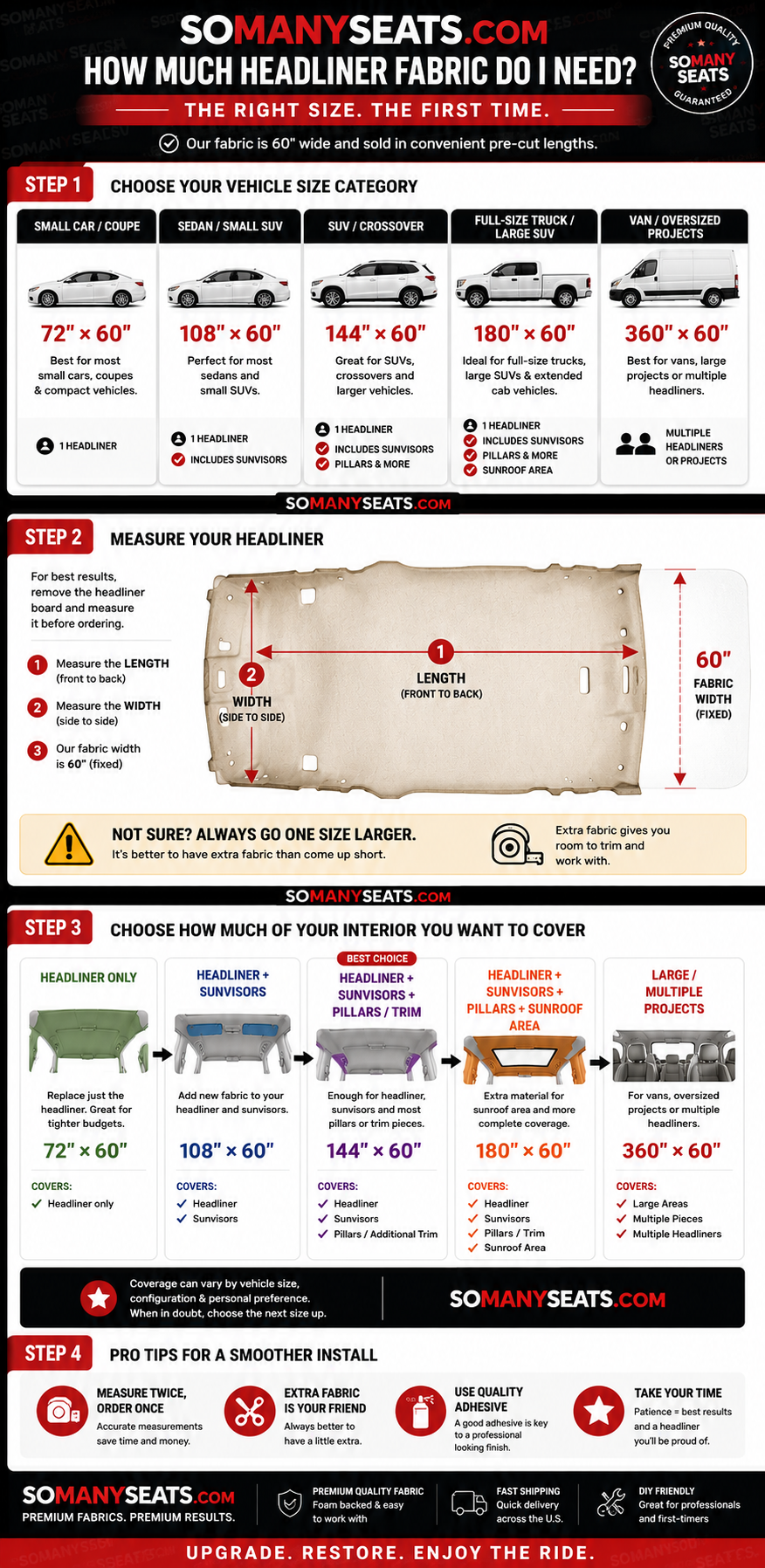

How to Measure Fabric for Your Headliner (The Right Way)

Getting the right amount of headliner fabric before you start your project is one of the most important steps — and one of the most commonly skipped. Order too little and you're stuck waiting for a second shipment mid-project. Order too much and you've wasted money. This guide walks you through exactly how to measure your vehicle's headliner so you get it right the first time.

What You'll Need

• A flexible measuring tape
• Pen and paper (or your phone's notes app)
• A helper (optional but useful for larger vehicles)

Step 1: Understand How Headliner Fabric Is Sold

.Most passenger cars require between 72x60 or 108x60. Larger vehicles like SUVs, vans, and trucks often need 144x60 or 180x60. Always add a buffer — we recommend at least 6–12 inches of extra length on each end for trimming and tucking.

Step 2: Measure the Length of Your Headliner

With the headliner board still in the vehicle (or removed and laid flat), measure from the front edge to the rear edge along the centerline of the roof. This is your base length measurement.

Example: If your headliner board measures 58 inches front to back, you'll want at least 72x60 of fabric (58 inches + 6–7 inches on each end for overlap).

Step 3: Check the Width

Measure the widest point of your headliner board. If it's under 60 inches, our standard 60-inch wide fabric will cover it in a single panel — no seams needed. If your vehicle is wider than 60 inches at any point (rare, but possible in full-size vans), you'll need to plan for a seam or source wider material.

Step 4: Account for Curves and Contours

Modern vehicles have curved rooflines, sunroof cutouts, and contoured edges. Fabric needs to stretch and wrap around these features. If your vehicle has significant curves or a panoramic sunroof, add an extra half-yard to your order to give yourself room to work.

Our Black Stretch Suede Headliner Fabric features 8-way stretch, which makes it significantly easier to work around curves and contours without bunching or wrinkling.

Quick Reference by Vehicle Type

• Compact/Sedan: choose 72x60 option
• Mid-size Sedan or Coupe: choose 108x60 option
• SUV or Crossover: choose 144x60 option
• Full-size Van or Truck Cab: choose 180x60 option

What About Adhesive?

Once you have your fabric, you'll need a quality headliner adhesive to bond it to the board. We recommend DAP Weldwood Landau Top and Trim Adhesive — it's a professional-grade contact cement that bonds firmly to foam-backed fabric and withstands the heat cycles inside a vehicle cabin.

For most passenger cars, a 1-gallon can is sufficient for a full headliner replacement with material left over for future repairs.

Ready to Order?

Now that you have your measurements, shop our headliner fabrics and order the exact size that you need. Our fabric ships fast and is cut to your specifications.

Shop Black Stretch Suede Headliner Fabric →

Have questions about your specific vehicle? Feel free to reach out — we're happy to help you figure out exactly what you need before you order.
